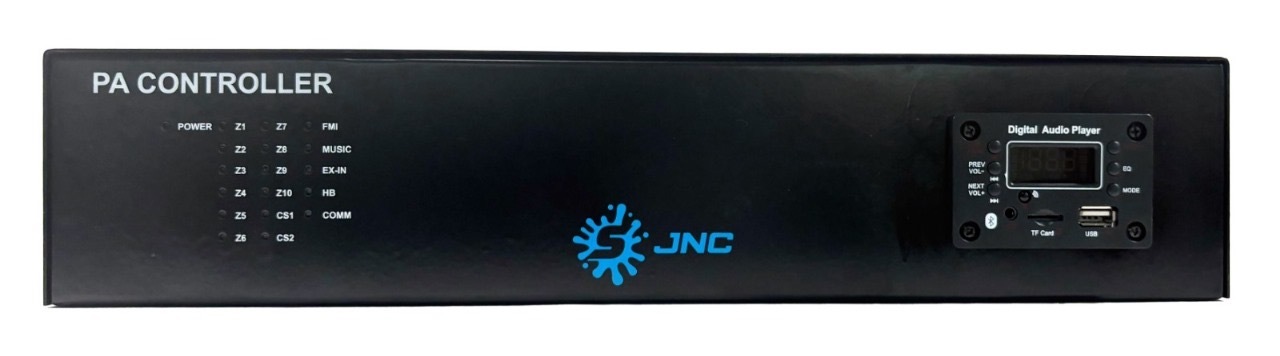

It functions for all the below-mentioned feature options, Selectable on an individual basis, selected zones or for all zones.

This gadget is used for playing music, playing recorded voice messages, and making all of our live announcements via microphone.

Fire evacuation notification on the display in the event of an emergency, such as a fire.

Priority option can be customized, for example, 1. Announcement 2. Fire alert 3. Music.

It is controlled exclusively from the control room since it only employs one-way communication.

Dimension: H:95mm X W:230mm X D:195mm

Weight: approx. 1.2 kg

Type: Desk Mountable

Input Voltage: Phantom Power Supply to Line amp Section / External 12v DC supply

Communication mode: RS485

1. It is to control incoming calls and outgoing announcement.

2. PTR Button: Announcement Selector (Press to Talk, Release to Listen).

3.To choose the zones, use keypads with feathers.

4. Notifications: Group Zones, Individual Selectable Zones, Multi Selectable Zones, and All Zones.

5.There is a way to add more zones to the Talk Back Speaker feature without disabling the current zone.

6.Liquid crystal display with backlighting for precise location information and console operation details.

7. A Buzzer, Zone details on LCD and an LED indication for an incoming call.

Dimension: H:95mm × W:230mm × D:195mm

Weight: approx. 1.2 kg

Type: Desk Mountable

Input Voltage: Phantom Power Supply to Line amp Section / External 12v DC supply

Communication mode: RS485

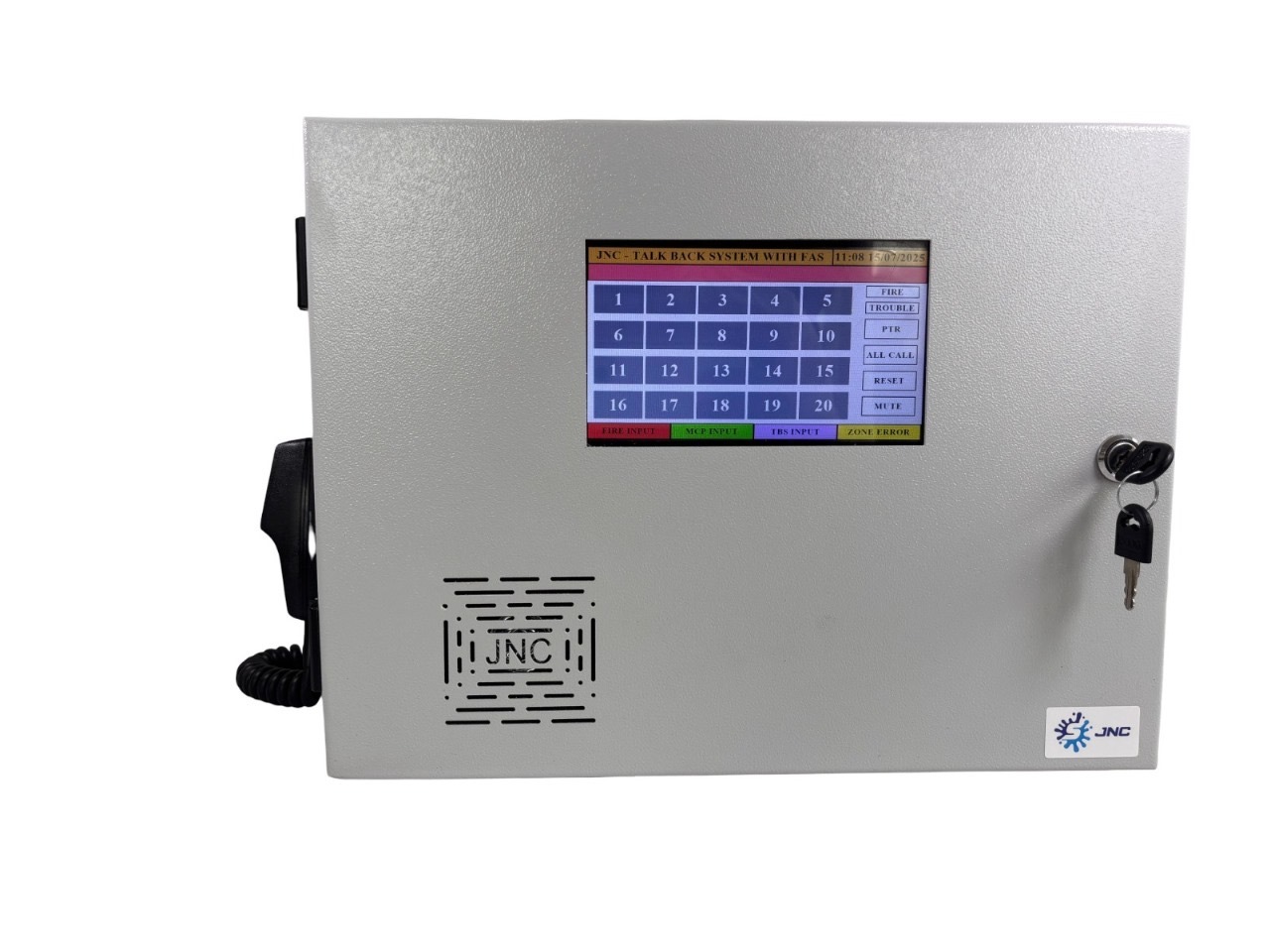

This is the heart of the Talk Back System.

Operates on 6 core loop in loop out.

Interactive 7” inch display with touch screen control.

If any zone got disconnected because of communication error or any other issues it will be displayed on the screen.

It is to control incoming calls and outgoing announcement.

PTR Button: Announcement Selector (Press to Talk, Release to Listen).

Notifications: Group Zones, Individual, Multi, or All Zones.

There is a way to add more zones to the Talk Back Speaker feature without disabling the current zone.

In-built single fire evacuation message for fire integration.

If a call received from any zone, It activates buzzer sound, colour change of particular zone and location will be displayed on the screen.

Priority announcement level is as 1. Fire alert 2. Announcement.

In Standard controller has 3 loops.

Dimension: H:300mm × W:400mm × D:140mm

Weight: approx. 4 kg

Colour: White

Type: Wall Mountable

Power supply: 230V, 50Hz, AC Supply

Current Consumption: <0.5 AMP

Distortion: <0.5%

Frequency response: 150 Hz – 10 kHz

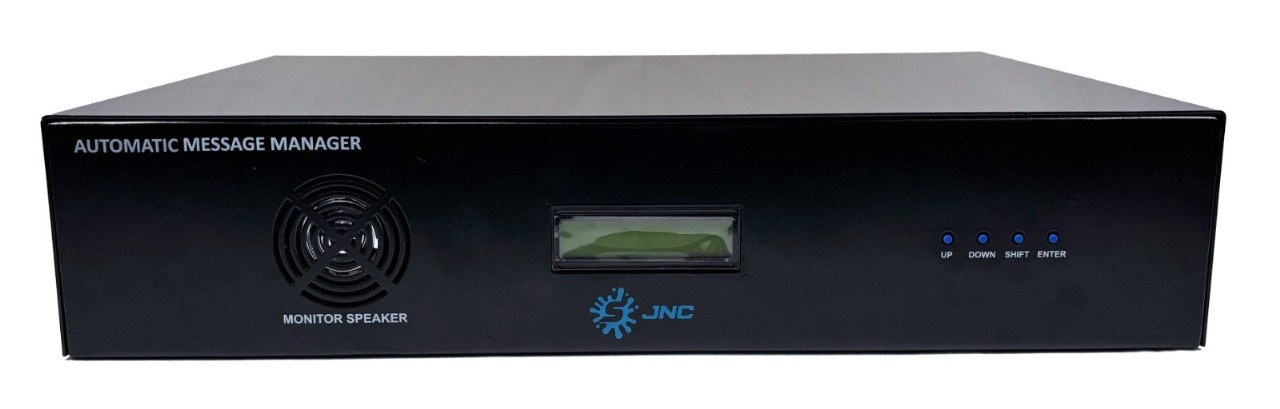

To announce the pre-recorded message automatically on scheduled time.

Inbuilt monitoring speaker to monitor messages.

We will have the option to schedule our messages based on priority, with a selection of 15 different types. For Example, All days, only weekends, only weekdays, Alternative days or any particular days etc..

Per day 25 pre-recorded messages can be played as per the schedule.

There is no limit for the length of each message.

User-friendly installation and programming.

Relay feature for the third-party integration.

Line Output to connect the amplifier.

Dimension: H:900mm × W:430mm × D:300mm

Weight: approx. 3.2 kg

Colour: Black

Type: Rack Mountable

Power supply: 230V, 50Hz, AC Supply

Current Consumption: <03AMP

Distortion: <0.5%

Frequency response: 150 Hz – 10 kHz

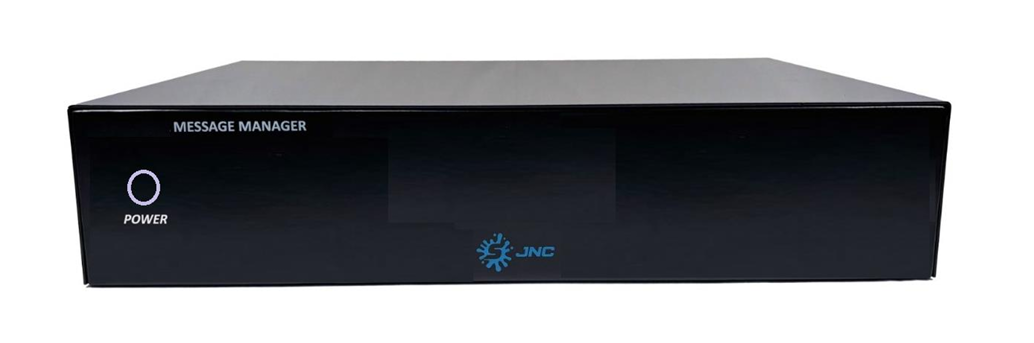

To announces pre-recorded messages manually through third party.

Inbuilt monitoring speaker to monitor.

Per day 20 Pre-recorded messages can be played.

Dedicated relay will be activated for each message.

There is no limit for the length of each message.

User-friendly for installation.

Line Output to connect the amplifier.

Dimension: H:900mm × W:430mm × D:300mm

Weight: approx. 3.2 kg

Colour: Black

Type: Rack Mountable

Power supply: 230V, 50Hz, AC Supply

Current Consumption: <03 AMP

Distortion: <0.5%

Frequency response: 150 Hz – 10 kHz

Typically, a patient can make a call by either pressing a feather touch key on the calling unit or using the bed’s palm switch.

This will activate all three indicators: the one on the calling unit, the amber door indicator, and the window on the Nurse Station Monitor dedicated to that particular calling unit, all of which will begin to flash.

Additionally, the voice announcement "Attention Bed Call" will repeat continuously.

Pressing the "Mute" button on the Nurse Call Processor at the Nurse Station or the "Care" button on the Room Unit in the patient’s room will silence the voice, and the previously flashing indicators will change to a steady state, signaling acknowledgment of the call. If the "Care" button is pressed directly or after the "Mute" button on the Nurse Station, it will indicate on the nurse station monitor that a nurse is attending to the patient (the Room Symbol will display NURSING Status, and the Door Indicator will turn green to show care is being provided).

Beyond this standard call, there are two other significant calls: the toilet call and Code Blue, which can also be initiated from a patient’s room.

When a toilet call is made through the toilet calling unit, it follows the same process as a standard call, except that the nurse station monitor will display a "Room Symbol with LED Status," and a distinct voice will announce "Emergency Toilet Call " It’s also important to note that the Door Indicator will flash more rapidly in red.

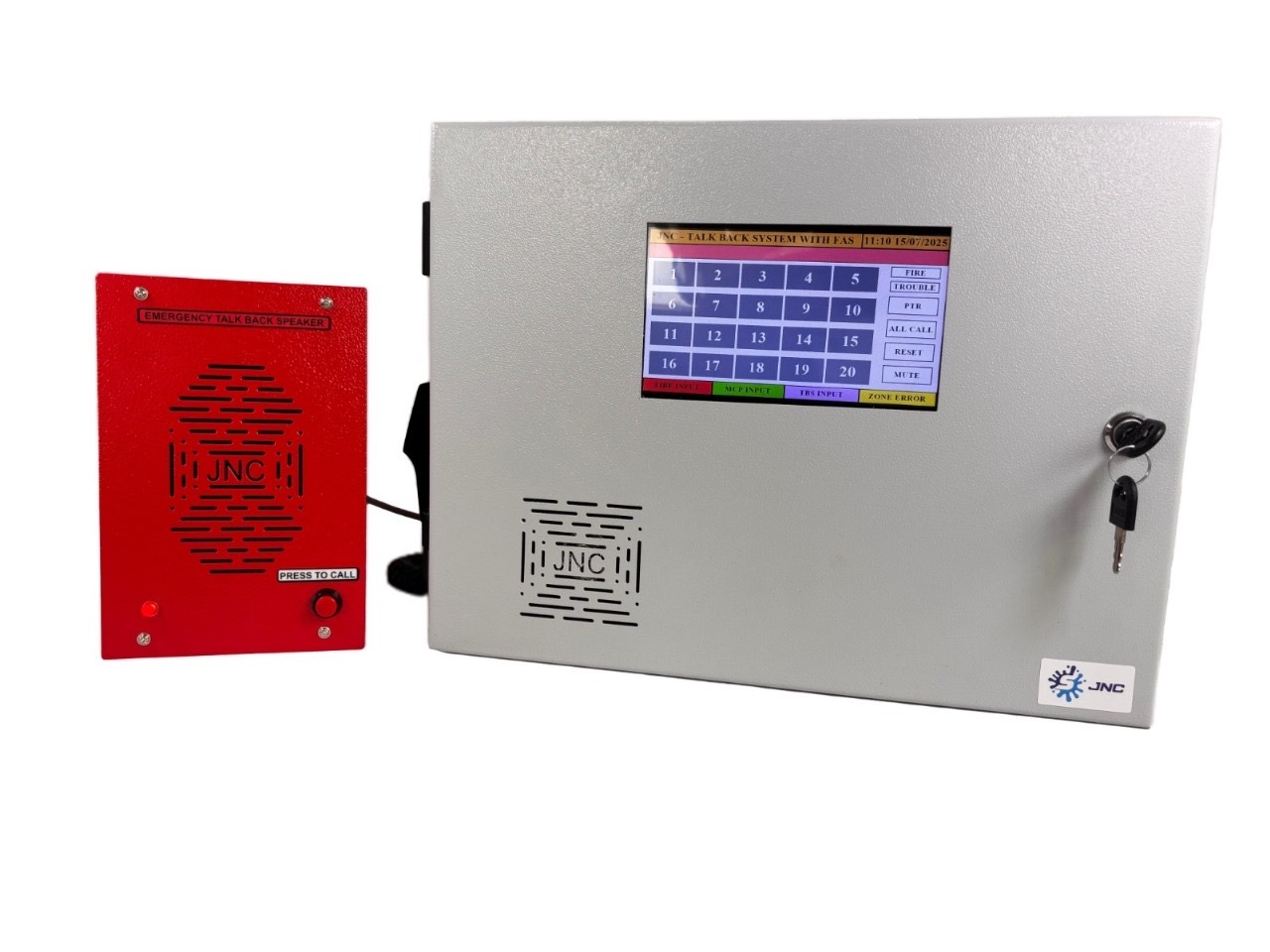

Interactive 7” inch display with touch screen control

Announcement selector - PTT Button (Press to Talk, Press to Listen).

During Incoming call, Zone name will be displayed with the colour change of respective zone indication along with the buzzer.

All field wiring are power limited and supervised

Announcements - Individual Selectable Zones / Multi Selectable Zones / All Zones
